A few years ago, factory-built housing felt unstoppable.

Investors were pouring money into sleek warehouses that promised to build homes like cars. Assembly lines with standard parts, faster timelines and low costs. The pitch was simple. Housing is broken. Factories can fix it.

Then reality hit. Factories are expensive to run. Shipping modules internationally is not cheap. Local building codes do not bend just because you have venture funding. Some companies missed deadlines. Some missed margins. A few became cautionary tales.

One of the biggest bets, a startup called Katerra, burned through more than $2 billion before it collapsed. But the dream of industrialized housing remained.

Now the housing crisis is worse. Rents are still high. Cities still cannot build fast enough. Governments are openly funding modular housing again. Capital is flowing back in. The factory lights are back on.

You can feel the tension, right? The need is real. The money is real. But so are the scars from last time. So here we are again. Same problem. New cycle. And one question sitting underneath it all.

Did modular housing finally figure out the hard part, or are we watching the sequel?

This week we are cracking open a patent for self-sustaining modular housing that flat-packs to a disaster site, assembles without skilled labor, and runs entirely off-grid by harvesting rainwater through the roof itself.

This week’s patent comes from Gary W. Hendren, and assigned to SAM House Inc. (Google Patents).

If you’ve been watching modular housing for a while, your guard is probably up. Fair. The last wave had big dreams and ugly unit economics. So here’s the honest call based on what’s in the patent and what killed the last cycle.

This patent does try to fix a few real pain points from last time, especially shipping and on-site assembly. But it does not magically solve the hardest part for commercial systems, which is scaling a building system through design, manufacturing, logistics, and code compliance without the whole thing turning into an expensive science project. That is still the graveyard.

That means it still carries the execution risk that burned investors before, even if it’s taking a better swing at the problem. However, this patent may help many people who are most at risk of inadequate housing, and we love to see it!

Picture a disaster zone or a remote site. You do not want to ship a bulky trailer. You want something that packs flat, stacks tight, and goes together fast.

That’s the opening move here. The patent is built around a panel-based housing unit that’s meant to be flat-packed, shipped, and assembled on-site, and it says the unit can be put together without skilled labour and without needing a large crane.

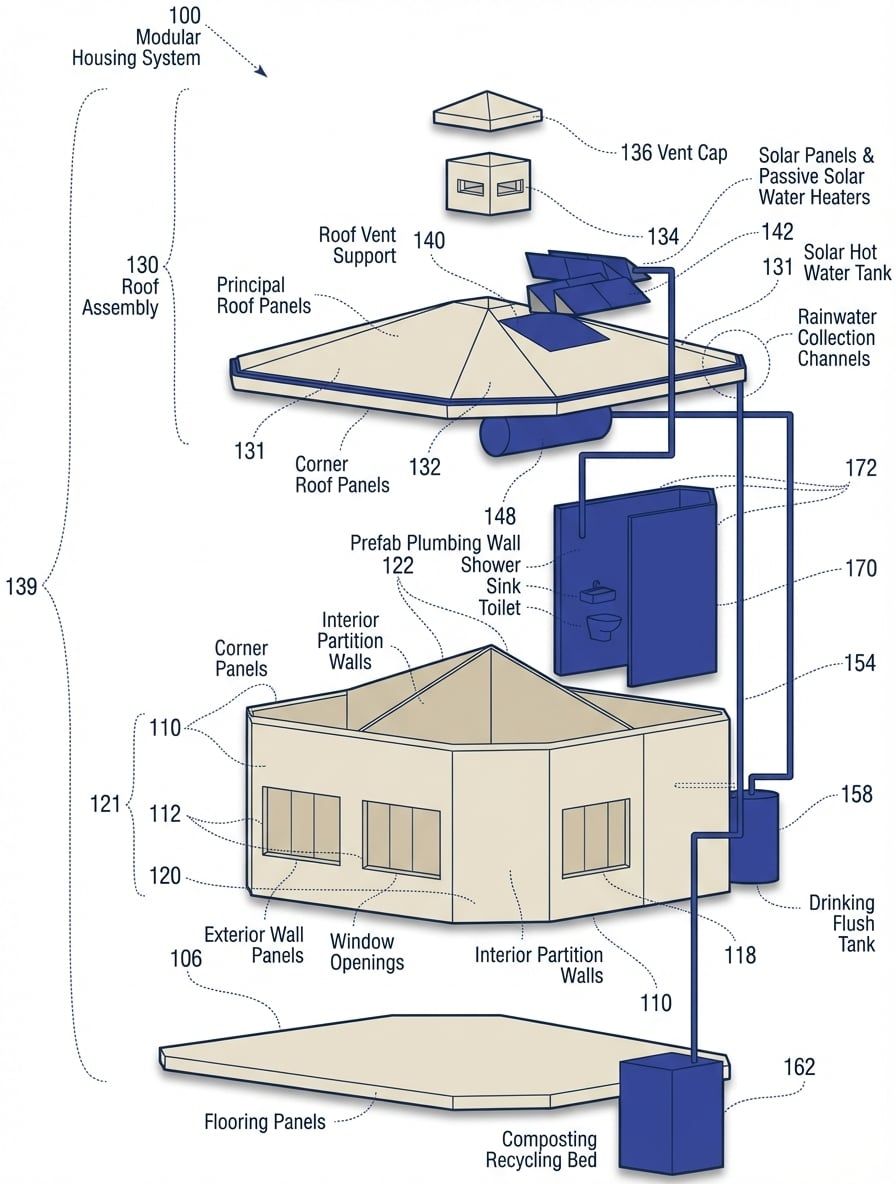

Here's the quick physical walkthrough.

You ship wall panels to the site. You stand up the exterior walls using those panels, then lock in a roof made from multiple roof sections. Interior partition walls slot in to define the rooms, and you can configure the same shell as a two-bedroom or a four-bedroom depending on how you arrange them.

This patent is trying to bundle three things into one repeatable kit.

First, the structure. It leans hard on glass fiber reinforced concrete panels, or GFRC, for the wall panels, floor panels, roof panels, and even the pre-fabricated plumbing wall. GFRC is concrete reinforced with glass fibers, lightweight enough to ship flat and handle manually, and is also fire-resistant and hurricane-proof.

Second, the energy layer. The roof has designated support areas for solar panels, wind generators, and passive solar water heaters. Power stored in on-site batteries. The system is designed to run off-grid. This is particularly useful for disaster scenarios where basic utilities may unexpectedly become scarce.

Third, the water system. The roof panels have built-in longitudinal openings that channel rainwater through drains into storage tanks. One tank is treated for drinking. A second tank is left untreated for flushing the toilet. The toilet itself is a composting model, with a recycling bed, so you don't need sewage infrastructure either. The plumbing, shower, sink, and toilet arrive as a single pre-fabricated wall unit.

So what’s novel here? The patent's actual claim is narrower and more specific than the flat-pack concept or the GFRC material. The real innovation is roof panels with built-in channels that collect rainwater and route it directly into storage tanks. The gutter is engineered into the panel itself, not bolted on after the fact. That integration of structure and water harvesting into a single prefabricated component is what the patent is actually protecting.

And what’s different from the modular housing that left investment scars last time? This is not your ordinary residential housing model. This is meant for situations where dire need overcomes your everyday, long term regulatory considerations (such as disaster and emergency housing). McKinsey has been blunt for years that modular only works when you master design, manufacturing, logistics, and assembly, and can actually reach repeatable scale. (McKinsey & Company)

But here’s the eyebrow-raise part. This patent still stacks complexity, but in an easier configurable model.

So if you’re an investor, the read is pretty clean. This patent is a better answer to shipping and speed than the old “ship a whole box” approach. The flat-pack pitch directly targets problems like bulky units being expensive to ship and hard to store. However, its real use case appears to be disaster or urgent need scenarios, which raises the question from McKinsey about repeatable and predictable scale. (McKinsey & Company)

UN-Habitat’s World Urban Forum material puts the housing crunch in blunt terms: nearly 3 billion people live in inadequate housing. That number is so big it stops sounding real, which is exactly how crises hide in plain sight.

When a problem is that large, investors stop asking “will this work?” and start asking “what if this finally works?” That’s why modular housing keeps coming back, even after the last wave left a mess.

Katerra burned through more than $2 billion before it shut down. People love to say it failed because “construction is hard.” True, but incomplete. It also failed because the promise was a factory system, and the reality was a thousand local exceptions.

So here’s the truth about this patent’s world. The market behaves like a patchwork.

In most places, a house is not one regulated object. It’s a maze of approvals: structural, fire, energy, plumbing, electrical, wind loading, seismic, transport, installation, inspections. That is where modular dreams go to die, or at least to get delayed until the economics rot.

This is why regulation matters so much for whether this spreads. And this is also why this patent seems to target disaster regions where the need may outweigh regulatory oversight… which no longer can afford to operate.

Although, there is a “good news” path for residential modular housing starting to open.

Just a few days ago, California passed a state law meaning that BOXABL’s modular solution are only subject to a 25% inspection of each BOXABL Casita Studio. Before this law, BOXABL was subject to a 100% inspection. In a state with an incredibly worrisome housing crisis, regulation is making way for solutions such as these.

Australia is building a national push to make initiatives like this easier to approve, including a voluntary certification scheme aimed at giving manufacturers more consistent compliance pathways.

This is a very clear signal that modular housing is becoming a more viable market even for residential solutions.

McKinsey puts it plainly. Capturing modular’s benefits is “not a straightforward proposition.” You have to “master challenges in design, manufacturing, technology, logistics, and assembly” and operate where you can hit “scale and repeatability.”

That is the execution tax. It does not care how pretty the rendering is.

Where is the most dire need?

Disasters and displacement create demand spikes where people need shelter now, not after a 14-month permit process. In emergencies, the bottleneck is often land, services, governance, and electricity.

Approximately 20 to 30 million people are newly displaced by disasters annually. In 2022, a record 32.6 million internal displacements were caused by disasters. (UNDRR)

In those contexts, there are sometimes faster regulatory pathways, but they are not a magic “skip the rules” card.

In disaster response, governments can use emergency procurement and temporary housing programs that move faster than normal homebuilding. FEMA’s disaster housing framework is literally built around direct temporary housing and longer-term pathways.

And humanitarian shelter has its own standards and realities. One widely used set of transitional shelter guidelines warns that shelters after disasters must be built to “last for a number of years,” not weeks. That line is a quiet dagger to any product that optimizes only for speed.

The hole in this modular roof

If the model needs high volume to bring unit costs down, but approvals and site prep keep projects lumpy, you get the worst of both worlds. It brings big fixed costs, irregular demand, and constant redesign. That is the Katerra trap in most regulated housing markets, even if the product is different.

The second failure mode is maintenance and serviceability. When you integrate more systems into the “house product,” you also integrate more failure points. Solar, batteries, controls, roofing interfaces, maybe even wind. The more it feels like a bundled gadget, the more you inherit the gadget problem. Who fixes it, who pays, and how fast?

The third failure mode is the optics gap. Concrete-heavy modular systems can look “green” because they talk about operational energy, but embodied carbon is now a serious mainstream critique, especially for cement and concrete supply chains.

Why it still might spread

Because parts of this really are moving in the right direction.

Panelized approaches can reduce transport pain compared to volumetric modules. McKinsey noted that shipping 2D panels can be far cheaper per square meter than shipping the 3D equivalent. That aligns with the patent’s “flat-pack” instinct, even if the patent itself does not prove the factory economics.

And regulators are starting to meet the industry halfway, at least in some countries, because the shortage is forcing their hand.

So the honest conclusion is this: the housing crisis will keep pulling patents like this forward, but execution will keep selecting the winners, and the winners will be the ones that turn modular into a repeatable compliance machine, instead of a one-off engineering flex.

Capital is back in industrialized housing. But it is not blind this time.

The global modular construction market is commonly estimated somewhere between $96 billion and $111 billion today, with projections ranging toward $130 billion to over $200 billion within the next decade. (Grand View Research)

Canada alone reported a C$5.1 billion modular construction market in 2024, roughly 7.5 percent of its overall construction activity.

Now layer in government money.

Australia has launched funding initiatives to accelerate housing like this, and is working on a voluntary national certification pathway to streamline offsite approvals. Canada has committed billions through its Canada Housing Infrastructure Fund, including targeted funding to accelerate housing innovation. Governments are nudging it forward.

Why? Because the shortage is real. And politically visible.

On the venture side, you can see capital testing the waters again.

Boxabl, a modular housing startup, recently pursued a public listing via a SPAC transaction reported at a $3.5 billion deal value. Samara, another prefabricated housing player, raised $34 million in a Series B led by Thrive Capital. Investor appetite is pushing on!

Then there is ZURU Tech, the housing arm of New Zealand's Mowbray family, which built a toy empire on robotics and automated manufacturing before pivoting hard into construction. Their bet is a vertically integrated system via an AI-powered design platform called Dreamcatcher, where users configure a home online, and that design flows directly into a fully automated factory currently being built on a 10-hectare site in China, with a claimed capacity of 10,000 square metres of buildings per day. Components flat-pack into containers and ship to site. Their stated cost target is $300 to $600 per square metre, a fraction of conventional construction rates. To prove the model, ZURU bought 15 lots in Malibu after the Los Angeles fires, treating the rebuilding effort as a real-world case study for the technology. It is an audacious swing and a useful reminder that the companies most likely to disrupt housing may not be coming from existing construction industry players at all. (The Post)

But here is the discipline part. After the Katerra collapse, investors are not funding “build houses like cars” as a slogan. They are asking about unit economics, factory utilization rates, supply chain depth, and regulatory repeatability.

The lesson from the last cycle is that modular only works when it becomes boring. Factories need steady throughput. Approvals need predictability. Designs need repetition. The minute every project becomes custom, the math breaks.

So what does this mean for a patent like this? It is entering a market where capital exists. Government support exists. Energy supply chains are stronger. The need is undeniable.

But investors are watching for something very specific now. Can this design plug into a repeatable compliance and manufacturing machine?

If yes, the capital is there. If no, the scars from last time are still fresh enough to keep wallets half-closed.

The need for modular housing is obvious, and money is flowing back in. But last time proved a brutal point that a smart design is not the same thing as a scalable building system.

This week’s patent sits right in that tension. It aims to make modular housing more product-like with repeatable parts, faster assembly, and integrated energy, but it does not erase the hardest risks.

Dive into the details: US 11,976,485 B2. Forward this to a friend who cares about the housing crisis or property, or drop a comment with your take!
